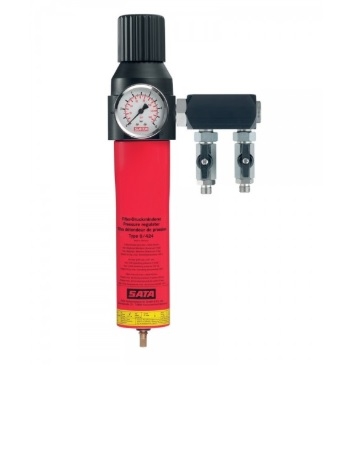

?SATA 0/424 VEDEN/ÖLJYNEROTIN PRONSSI SUODATTIMELLA.
TÄMÄ ON NIIN SANOTTU MAALAAMOIDEN VUOSIKYMMENIEN AIKANA HYVÄKSI HAVAITTU "MERSU" VERSIO VEDEN/ÖLJYN EROTTIMESTA.
Sisältää
-
The cyclone separator thoroughly removes oil and water from the compressed air
-
The automatic condensate discharge valves prevents condensate from penetrating into the compressed air circuit (low servicing efforts)
-
The large sintered bronze filter, filtering particles of 5 micron size, has a long life time and is easy to clean
-
Sturdy metal housing, making the combi fine filter unit perfectly suitable for temperatures of up to 120° C (248° F)
-
Very high air flow: 3,600 Nl/min at 6 bars (130cfm at 90psi)
-
Air inlet: 1/2 inch
-
Two outlet valves: 1/4 inch
-
The pressure regulator with gauge allows easy pressure adjustment
ir inlet: G 1/2 int.
Operating Inlet Pressure: 15,0 bar (225 psi)
Operating outlet pressure: 10,0 bar (145 psi)
Air flow rated at 6 bars/87 psi: 3600 Nl/min (129,6 cfm)
Max. surrounding temperature: 120° C
